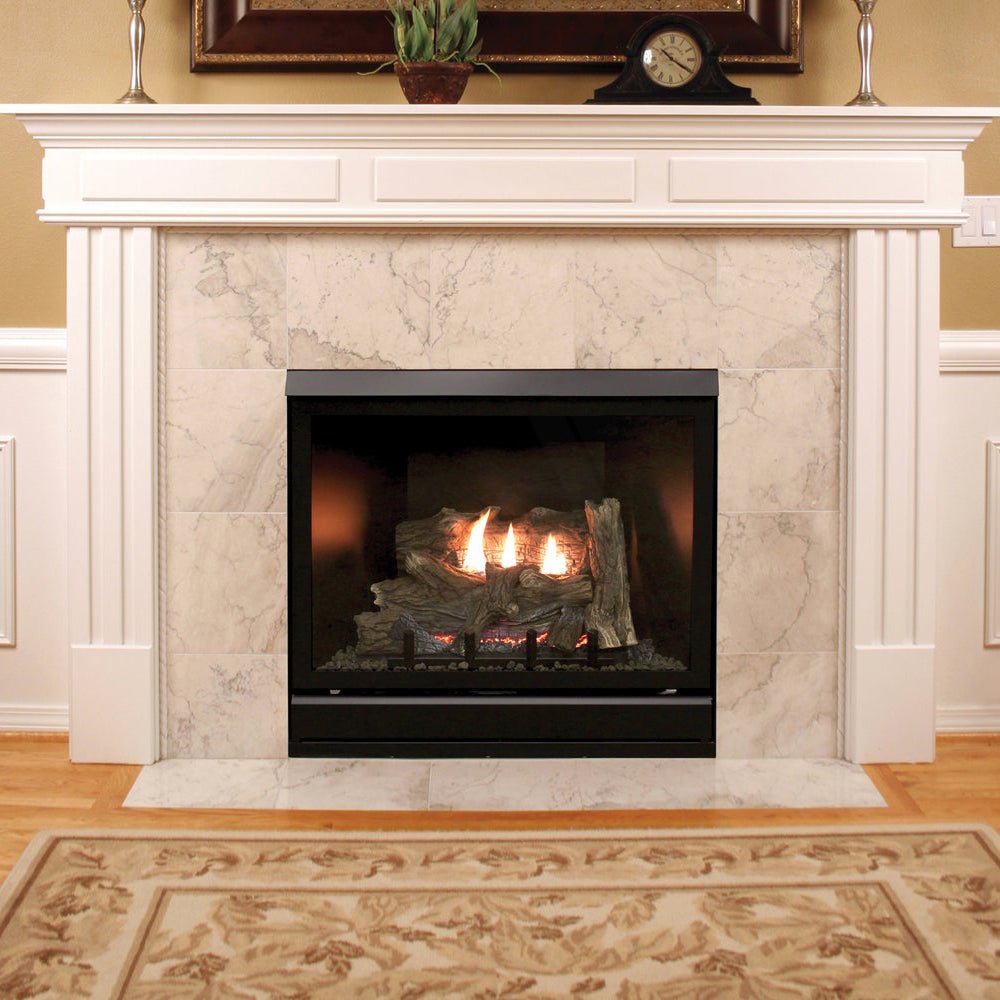

American Hearth Madison Deluxe Clean Face Fireplace - DVCD

Select one Body to make a complete Fireplace.

Madison Clean-Face Deluxe models feature our Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame.

The Clean-Face Deluxe Fireplace comes with a discreet air distribution channel that eliminates the look of louvers, yet still allows you to operate the optional blower.  It features a large heat-resistant, tempered glass window that provides an unobstructed view to the log set.

Choose an optional liner – Aged Brick, Herringbone, Stacked Limestone, or Black Reflective – to customize your fireplace.

Madison Clean-Face Deluxe models require 17-3/4, and  use 4 x 6-5/8 venting, making them ideal for applications where wall-cavity space is tight.

Designed for in-wall installation, your Madison Clean-Face Direct-Vent fireplace can be finished with tile or other non-combustible material, which conceals the outer edge of the fireplace to provide a true built-in appearance.

Specification

• Tempered Glass: 20 x 27 1/2
• Top or Rear Vent, Venting: 4 x 6 5/8 (Refer to manual for venting requirements)
• Framing 39 H x 35 1/4 W x 18 D (see manual before framing)
• Variable Speed Blower available as an Accessory
• Pallet Quantity: 6
